ENT-W9-106

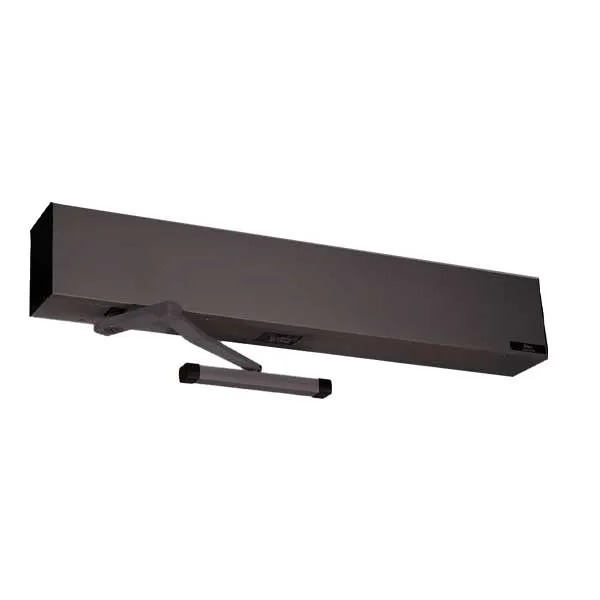

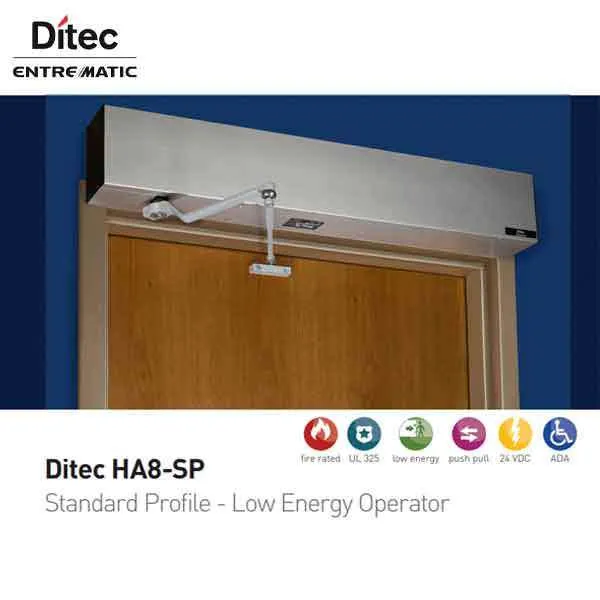

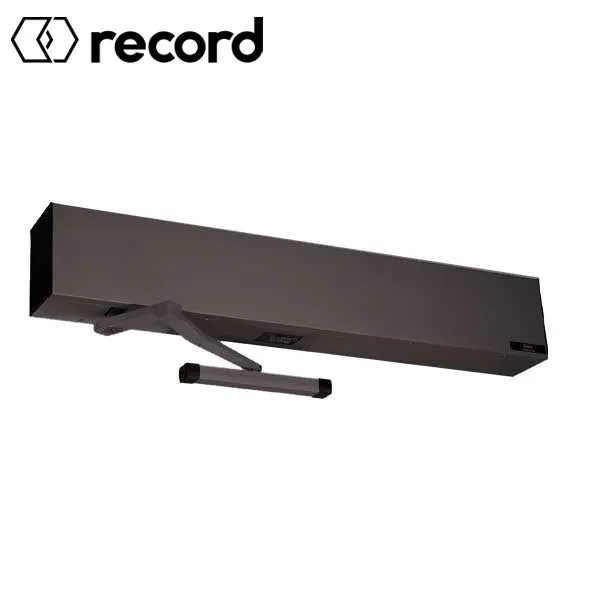

The Ditec HA8-SP is the standard profile low-energy operator that works in nearly every application including high-traffic and exterior. The standard profile can be installed in hospitals, retail stores, schools & universities, airports, convention centers, casinos, industrial buildings and offices.
Pull Arm - Left Hand
Antique Bronze Finish
Available in 39", 45" or 51" sizes (Select Below)
- Quality Heavy Duty Commercial Construction
- High precision gears made for sustained long-term use
- Electro Mechanical Design for simple dependable operation
- Permanent lubrication for maintenance free operation

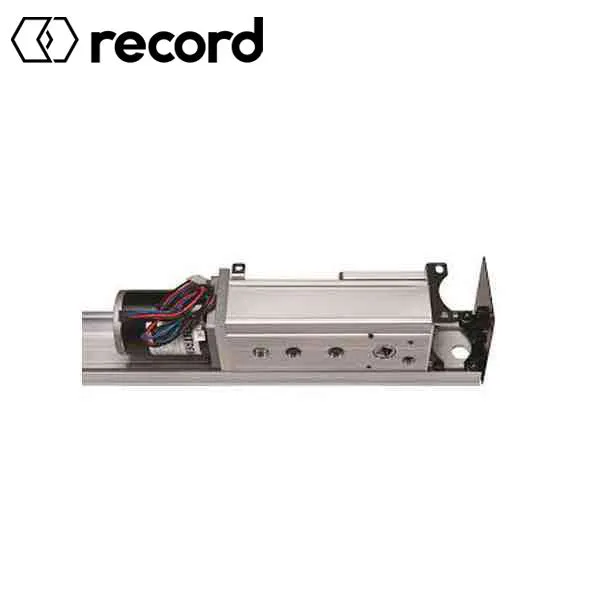

- Cast alloy gear box
- 1/8th HP motor

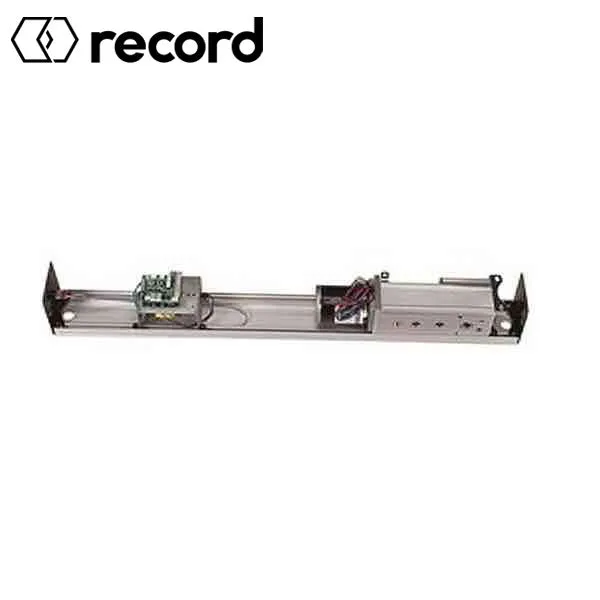

- Digital control board
- Advanced Technology
- On-board programming
- Built in strike/mag lock relay - fail safe or fail secure
- Separate inputs for activation and safety devices
- Plug-n-play design for fast trouble free installation
- Compatible with safety and activation devices
- Integrates with building access & security systems
- Adjustable spring tension overcomes wind and stack pressure
- One-way clutch allows for easy manual door operation
- Powerful and Quiet, Yet Forgiving
- XP Spring available for extra closing force
- Concealed adjustable door stop - eliminates external door stops
- Ultra quiet operation - noise free in both automatic and manual modes
- Durable
- Built to outlast the competition
- Perfect for high traffic locations
| Application | Single Doors |
| Header Profile Dimensions | 6 1/2" x 4 1/2" |
| Motor | 1/8 HP |
| Gear Grease | High Wear Protection |
| Manual Opening/Closing Force | Adjustable 5 to 30 lbs. |
| Single and Dual Digital Control Box |
Single HA-8 w/Data, 24 VDC, 3 AMP |
| Operating Voltage (Standard) | 115VAC |
| Magnetic Limit Switches | Yes |
| Arm Connection | 1” Solid Spline Spindle |
| Adjustable Stop | Yes |
| Operator Switch | On-Off-Hold Open |
| Adjustable Spring Tension | Yes |
| Mechanical Clutch | Standard |
| Push or Pull Application | PULL |
| Easy Manual Operation | Yes |
| Surface Mounting | Yes |
| Concealed Mounting | Center Pivot, Hinge, or Offset Pivots |
| Push Reveal | 0" to 14" |
| Pull Reveal | 0" to 4" |
| Electric Strike Output Power | 24 VDC |
| Fire Door Compatibility | UL10C Approved |
| Mechanical Clutch | Standard |
| Circuit Protection | 3 amp Fuse |
| Easy Manual Operation | Yes |
| Total Weight w/ 39" Header | 45 lbs |
| Meets ANSI 156.19 | Yes |
| Fire Door Compatibility | UL10C Approved |
