ENT-WL-106

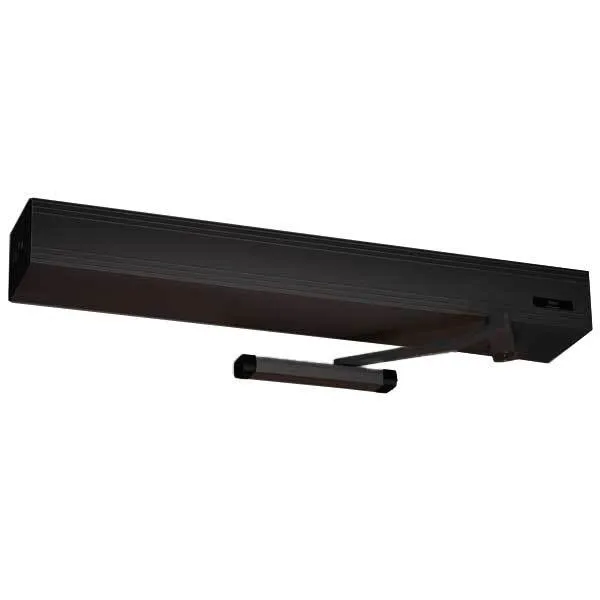

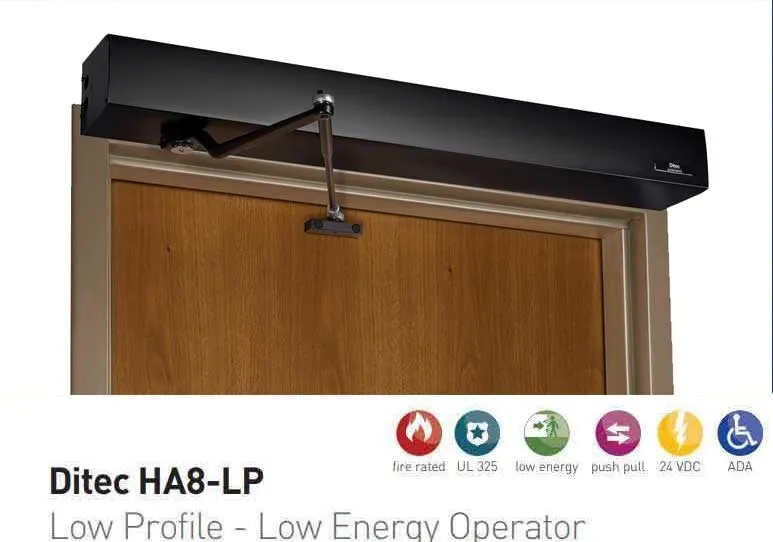

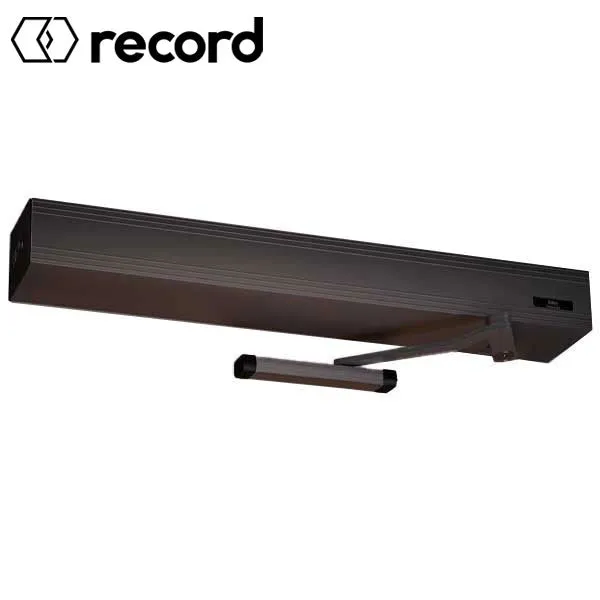

The Ditec HA8-LP low-energy operator has the same power and durability of the standard profile, but with a smaller header for applications where clearance is limited. The low-profile is available as surface applied, and can be found in hospitals, retail stores, schools & universities, airports, convention centers, casinos, industrial buildings and offices.
Antique Bronze Finish
Available in 39", 45" or 51" sizes (Select Below)
- Quality Heavy Duty Commercial Construction
- High precision gears made for sustained long-term use
- Electro Mechanical Design for simple dependable operation
- Permanent lubrication for maintenance free operation

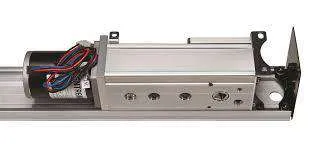

- Machined alloy gearbox housing
- 1/8th HP motor
- Digital Control Board
- Advanced Technology
- On-board programming
- Built in strike/mag lock relay - fail safe or fail secure
- Separate inputs for activation and safety devices
- Plug-n-play design for fast trouble free installation
- Compatible with safety and activation devices
- Integrates with building access & security systems
- Durable
- Built to outlast the competition
- Perfect for high traffic locations
| Application | Single Doors |
| Header Profile Dimensions | 4 1/8" x 5 1/8" |
| Motor | 1/8 HP |
| Manual Opening/Closing Force | Adjustable 5 to 30 lbs. |
| Push Reveal | Up to 14" |
| Pull Reveal | Up to 5" |
| Total Weight with 39" Header | 44 lbs |
| Handing | Pull Arm Left Hand |
| Drive Train Gear Box | Aluminum-Alloy Gearbox |
| Control Box | Single HA-8 w/Data, 24 VDC, 3 AMP |
| Operating Voltage (Standard) | 115VAC |
| Gear Grease | High Wear Protection |
| Bearings | HD Sealed |
| Motor | 1/8th HP |
| Manual Opening/Closing Force | Adjustable 5 to 30 lbs |
| Arm Connection | 1” Solid Spline Spindle |
| Adjustable Stop | Yes |
| Operator Switch | On-Off-Hold Open |
| Adjustable Spring Tension | Yes |
| Mechanical Clutch | Standard |
| Push or Pull Application | Pull |
| Easy Manual Operation | Yes |
| Surface Mounting | Yes |
| Side Loading | Yes |
| Push Reveal | Up to 14” |
| Pull Reveal | Up to 5” |
| Electric Strike Power | Yes 24 VDC |
| Fire Door Compatibility | UL10C Approved |
| Circuit Protection | 3 amp Fuse |
| Total Weight w/ 39" Header | 44 lbs |
| Meets ANSI 156.19 Low Energy | Yes |
